CYO-400A
Availability： In stock
Model number： CYO-400A
Product Description
- CYO-400A(Opening 30mm)
- Compressed die sizes(mm²):50,70,95,120,150,185,240,300,400
Inquiry
Quantity
Product Introduction

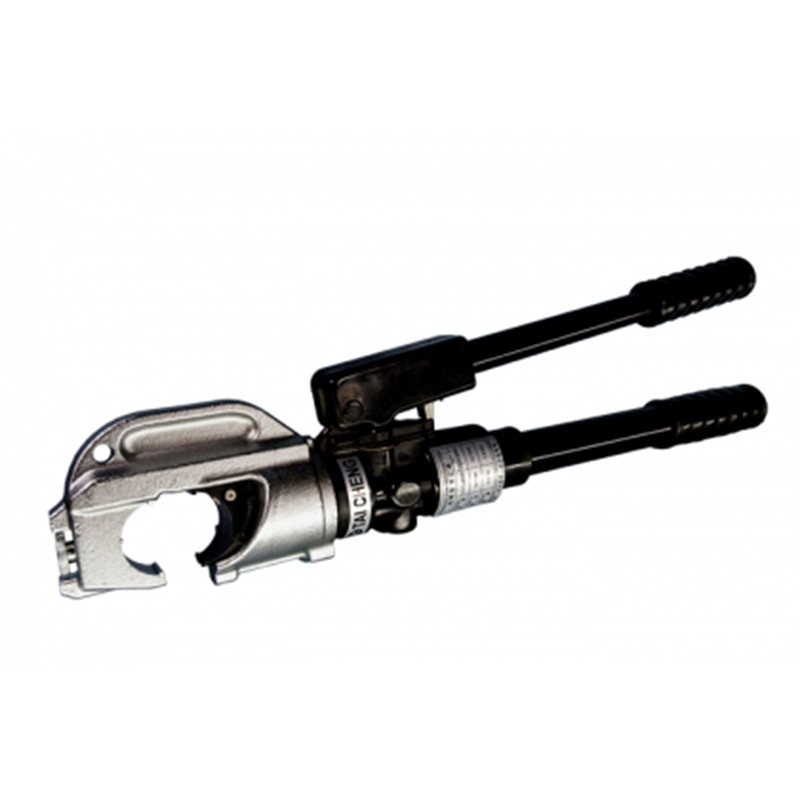

- High pressure direct type hydraulic compressed tool, manually operation entering oil by high and low two-stage output, the maximum output pressure is 700kgf/cm2(10000psi).
- Easy to operate and carry, suitable for high-altitude operations.
- C-shaped head, opening 30mm and 38mm, suitable for crimping brass, copper terminal and C-type ,H-type terminals for overhead work; especially outside operation for electricity conductors, power companies and general house wiring crimping.
- The operating handle grips are FRP material, can insulated 20KV/ 5minutes.

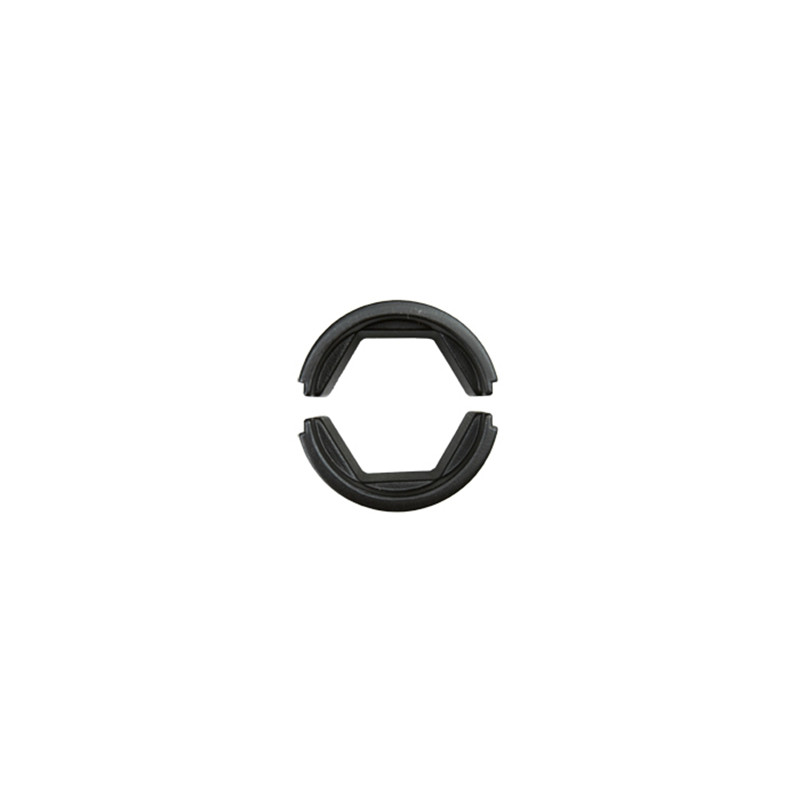

- Accessory dies can be replaced, hexagon compression type, compression maximum size up to 400mm2.
- 180o rotatable head part, can make use of variety of angles.
- With the overload-protective device.
- Able to customize dies in any sizes.
| Item | Output (Ton) | Body weight (kg) | Net weight (kg) | JIS | AWG | DIN | Compressed die sizes (mm²) | Remark |
|---|---|---|---|---|---|---|---|---|
| CYO-400A | 12 | 6.2 | 7.8 | 325 | 750 | 400 | 38,60-70,80,100 | Hexagon |
